Description

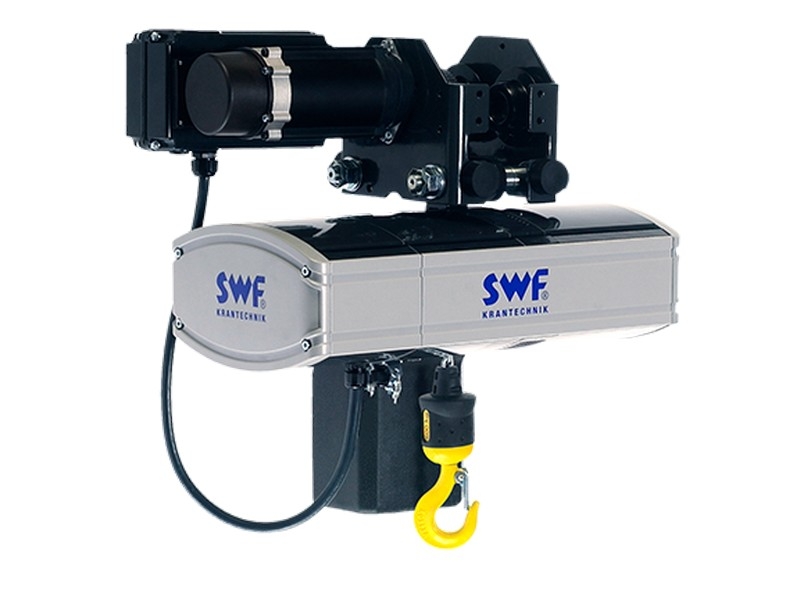

SWF Krantechnik chain hoists are designed for loads up to 5 tons. They offer high durability and flexibility in handling different types of loads.
As standard, CHAINster hoists are equipped with a two-speed lift (main lift and micro lift). The hoist travel is standard with a smooth travel by means of a frequency converter or two speed. As an option, the hoists can be equipped with stepless stroke control by means of a frequency converter or by contactless switches for precise movement.
- Load capacity: max. 5,000 kg
- Lift height: up to 35,000 mm
- Travel speed: up to 20 m / min
- Lifting speed: up to 20 m / min
- Voltage: 380/400/415 V 50 Hz
- Standard protection: IP 55
- Contactor control: 48 V
- Lift switch: 2-stage end
- Overload protection: Mechanical and thermal
- Operating temperature: -10C to 45C
